Bioscape All in One Pond Filter Lght Pump and UV Connecter
Water type
Freshwater
Fits
Bioscape All in One Submersible Pond Filter with UV 2000LPH (BIS671)
Part no.
BIS670F
Bioscape All in One Pond Filter Lght Pump and UV Connecter

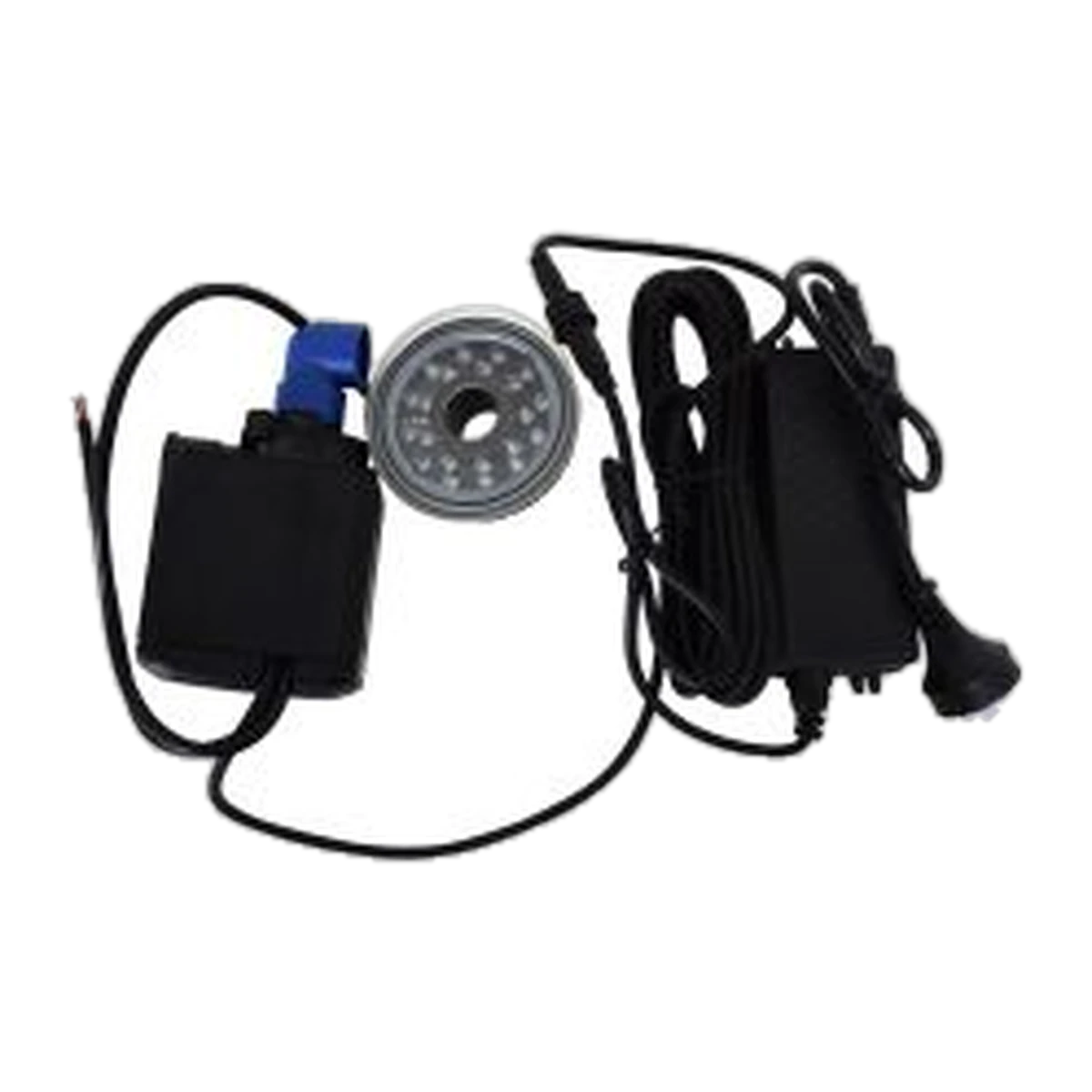

The complete pump and light assembly for the UV-equipped All in One pond filter. This is the genuine pump-and-light unit with UV-C connector for the Bioscape All in One Submersible Pond Filter with UV 2000LPH (BIS671) – the motor, impeller housing and LED fountain light as one assembly, with the fitting that connects to the 8 W UV-C lamp chamber. It replaces the pump itself, not just the impeller, and is the right part when the motor has failed rather than just worn its impeller.
Key features
- Complete pump-and-light assembly – motor, impeller housing and the 1 W automatic LED fountain light, in one replaceable unit.
- UV-C connector fitted – the fitting that seats the 8 W UV-C lamp chamber, specific to the UV model.
- For BIS671 only – the non-UV model (BIS670) takes the equivalent part without the UV connector; see Bioscape All in One Pond Filter Light Pump Unit.
Which model does this fit?
| Model | Fits |
|---|---|
| Bioscape All in One Submersible Pond Filter with UV 2000LPH (BIS671) | Yes |
| Bioscape All in One Submersible Pond Filter 2000LPH (BIS670, no UV) | No – use the Light Pump Unit without UV connector instead |
Specifications
| Part number | BIS670F |
|---|---|
| Assembly includes | Pump motor and impeller housing, LED fountain light, UV-C connector fitting |
| Not included | The UV-C lamp itself – see Bioscape All in One Pond Filter UV-C Globe 8 W |
| Water type | Freshwater ponds |
Suitable for, and not suitable for
Suitable for the Bioscape All in One Submersible Pond Filter with UV, model BIS671. Not suitable for the non-UV BIS670 – fitting the wrong assembly leaves the UV connector unused or the non-UV pump without a lamp seat.
Care and maintenance
If the fountain runs but water isn't clearing, check the UV-C lamp before assuming the pump has failed – a lamp past its 12-month replacement interval will not clarify even with a fully working pump. Replace this pump-and-light assembly when the motor itself is faulty: it won't prime, it's noticeably louder than normal, or the LED light no longer functions.
Warranty and delivery
Covered by consumer guarantees under Australian Consumer Law. This is a component of the 24 V DC low-voltage circuit of the All in One unit – the transformer is a separate part and is not affected by this replacement. Ships as a standard parcel.
Common questions
Is this the same as the impeller and shaft part?
No. This is the complete pump motor, housing and light assembly. If only the impeller is worn or jammed, the cheaper Impeller with Shaft is the right fix.
Does this include the UV-C lamp?
No. This part is the pump body and the connector the lamp seats into – the lamp itself is sold separately and is a 12-month consumable.
Will this fit my BIS670 (non-UV model)?
No. BIS670 doesn't have a UV connector. Use the Light Pump Unit without UV connector for that model instead.
