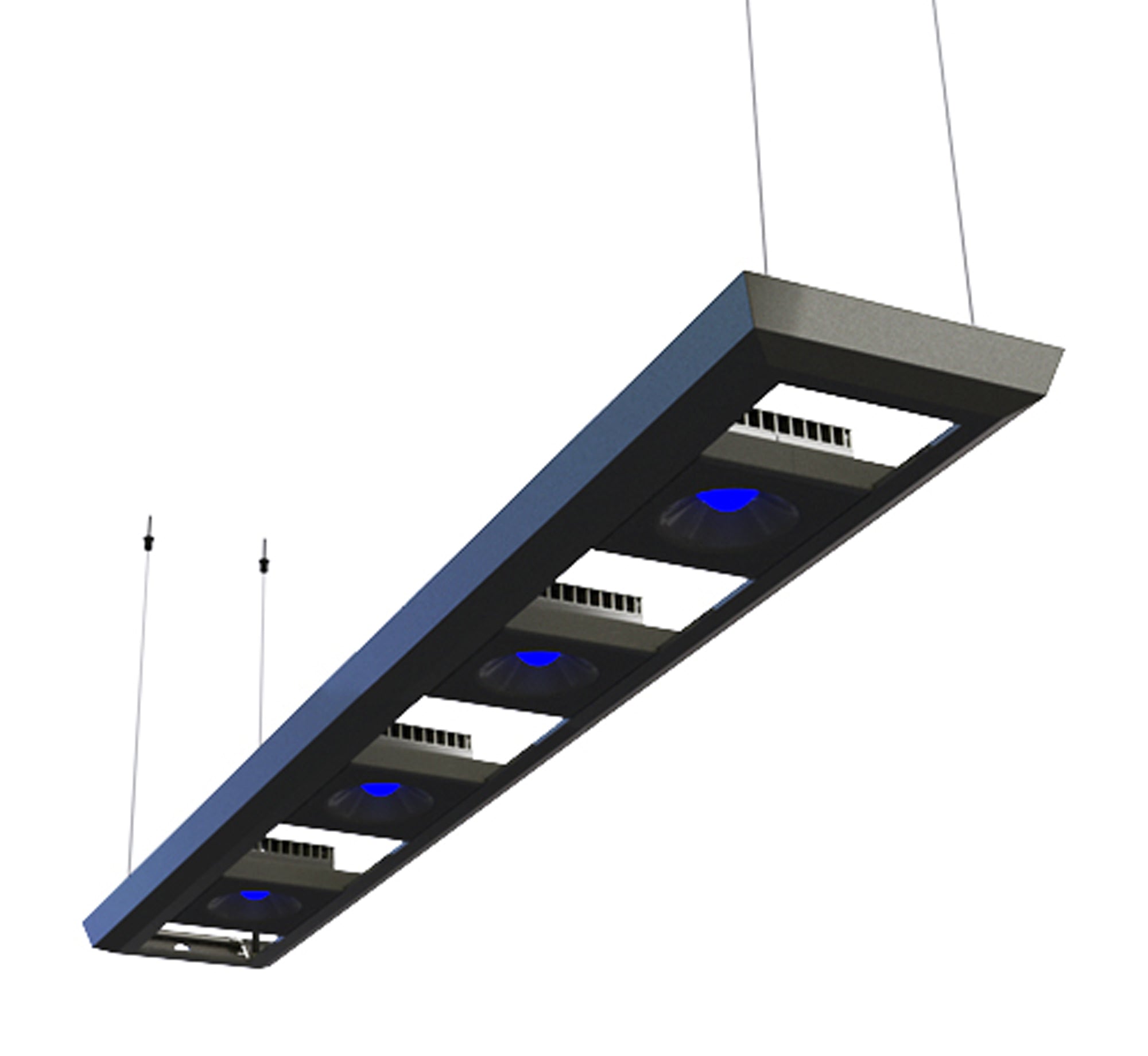

Red Sea ReefLED Pendant for 180-205cm tank
Water type
Marine + Reef
Fits
Red Sea ReefLED 90, Red Sea ReefLED 160S
Red Sea ReefLED Pendant for 180-205cm tank
The widest ReefLED frame Red Sea makes, for displays that need several lights held dead level. This black Red Sea ReefLED Pendant is the largest of the range, suspending ReefLED units above wide aquariums on a single ceiling-hung frame instead of a run of separate rim clamps.
Key features
- The widest size in the range — sized for tanks around 180–205 cm long, the largest of Red Sea's five pendant lengths.
- Ceiling-hung, not rim-clamped — frees the whole rim for feeding, aquascaping and equipment access, and suits peninsula as well as regular tanks.
- Concealed cable routing — power leads for every fixture on the frame run back through it rather than trailing across the rim.
- Black finish — a low-profile option; the same frame is also sold in white.
Specifications
| Fits tank length | 180–205 cm |
|---|---|
| Part number | RED763 (black) / RED764 (white) |
| Compatible fixtures | Red Sea ReefLED 90 and ReefLED 160S — not the smaller ReefLED G2 60 |
| Mounting drop (light unit only, fixture-dependent) | ReefLED 90: approx. 21 cm · ReefLED 160S: approx. 31 cm |
Which ReefLED Pendant do I need?
Red Sea makes this pendant in five lengths, each in black or white, matched to tank length:
| Tank length | Part number (Black / White) |
|---|---|
| 75–100 cm | R35140 / R35141 |
| 100–120 cm | R35142 / R35143 |
| 125–150 cm | R35144 / R35145 — holds up to 3 units |
| 155–180 cm | R35146 / R35147 — holds up to 4 units |
| 180–205 cm (this listing) | R35148 / R35149 |
Measure your tank's external length before ordering. If your tank is close to either end of this frame's range, check with us first — manufacturer documentation on the exact upper limit of this largest size varies between sources, and we'd rather confirm than have you order the wrong frame.
What's included / what you'll still need
The pendant frame ships with its ceiling suspension hardware. It does not include the ReefLED light units, or the adapter trays that clip each fixture into the frame — a ReefLED 90 Adapter Tray or ReefLED 160S Adapter Tray (sold separately, one per fixture) is required to mount lights onto it.
Will it fit my tank?
Sized for tanks around 180–205 cm long. It's a ceiling-suspended frame, not a rim clamp, so check the ceiling height and joist or stud location above the aquarium rather than the rim itself — at this width, confirm there's a solid fixing point spanning the full frame length before drilling. This size does not fit the compact ReefLED G2 60, which uses its own mounting arm or the separate G2 hanging kit.
Suitable for, and not suitable for
Suitable for a large reef display running several ReefLED units across a wide or peninsula tank that needs them held level without a run of separate rim clamps. Not suitable for the ReefLED G2 60, and unnecessary for a single-light setup — a mounting arm or the G2 hanging kit is simpler and cheaper for one fixture.
Warranty and delivery
Covered by Red Sea's manufacturer warranty, in addition to your consumer guarantee rights under Australian Consumer Law. This is a large, oversized frame kit — confirm delivery access for a long boxed item when ordering.
Common questions
Is this the largest ReefLED pendant Red Sea makes?
Yes, of the five lengths in the range, this is the widest, covering tanks around 180–205 cm long.
Does this fit the ReefLED G2 60?
No. The pendant range is built for the ReefLED 90 and 160S. The G2 60 uses its own mounting arm or the separate ReefLED G2 hanging kit.
Are the adapter trays included?
No. The pendant is the frame only — you'll need a ReefLED 90 or 160S adapter tray for each light unit, sold separately, to mount it onto the frame.
