Red Sea Reefer Max 170 G2+
Suits tanks
128–165 L
Water type
Saltwater + Reef
Warranty
2 years
Delivery
Oversize - freight quote required

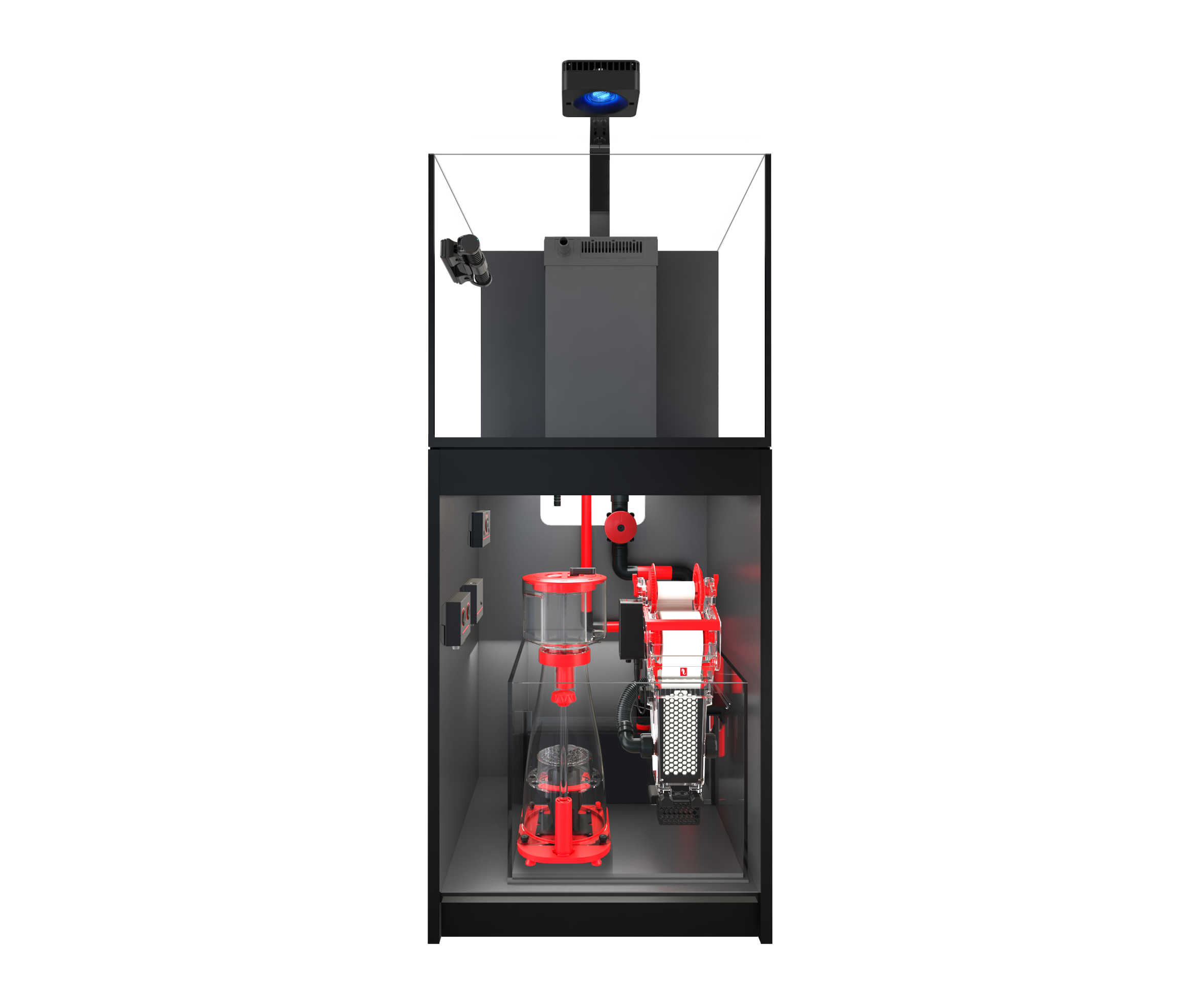

Red Sea Reefer Max 170 G2+
The compact entry point into Red Sea's ready-to-run MAX platform. The Reefer MAX 170 G2+ pairs a 128 L display and 37 L sump with a ReefLED G2 115 light, a ReefWave 25 gyre pump, a ReefRun G2 4000 return pump and a Reefer DC Skimmer 300 — genuinely reef-ready in one purchase, at the smallest footprint in the MAX G2+ range.
Key features
- 165 L total system volume in a 60 x 50 cm footprint — the smallest MAX package, suited to a spare corner rather than a feature wall.
- ReefLED G2 115 and ReefWave 25 included — lighting and flow are sorted from day one, both app-controlled through ReefBeat.
- ReefRun G2 4000 DC return pump with controller — the same pump used across the whole MAX G2+ size range.
- Reefer DC Skimmer 300 — sized for this system's bioload, already fitted in the sump.
- ReefMat 250 automatic filter roller — mechanical filtration that advances itself, rather than a filter sock you change by hand.
- ReefATO+ auto top-off — with temperature and leak sensors, handling evaporation without a separate purchase.
- Slide-out Control Panel — a dedicated bay for powerboards and controllers.
What's included
- REEFER-S 170 G2+ display tank, sump and cabinet
- 1x ReefLED G2 115 light with mounting arm
- 1x ReefWave 25 gyre powerhead (1980 GPH)
- 1x ReefRun G2 4000 DC return pump and controller
- 1x Reefer DC Skimmer 300 protein skimmer
- 1x ReefMat 250 automatic filter roller
- 1x ReefATO+ auto top-off with temperature and leak sensors
- Slide-out Control Panel; sump with pre-glued plumbing
Not included
Not included on any size in this range: heater, chiller, RO/DI unit, test kit, salt mix, live rock, sand or livestock.
Specifications
| Display tank dimensions | 60 cm L x 50 cm W x 51 cm H |
|---|---|
| Total system height | 137 cm |
| Display volume | 128 L |
| Sump volume | 37 L |
| Total system volume | 165 L |
| Glass | 10 mm front and base, 12 mm sides |
| Weight, empty | 25 kg |
| Weight, filled | 180 kg |
| Warranty | 24 months standard; the glass aquarium extends a further 12 months with registration |
Which size do I need?
All three MAX G2+ sizes share the same return pump and skimmer model — you're choosing display footprint and lighting/flow coverage, not filtration capacity.
| MAX 170 G2+ | MAX 200 G2+ | MAX 250 G2+ | |
|---|---|---|---|
| Display tank | 60 x 50 x 51 cm | 60 x 57.5 x 53 cm | 90 x 50 x 53 cm |
| Display volume | 128 L | 158 L | 203 L |
| Sump volume | 37 L | 42 L | 42 L |
| Total system volume | 165 L | 200 L | 245 L |
| Glass | 10 mm front/base, 12 mm sides | 10 mm front/base, 12 mm sides | Uniform 12 mm |
| Lighting included | 1x ReefLED G2 115 | 1x ReefLED G2 115 | 2x ReefLED G2 115 |
| Circulation included | 1x ReefWave 25 | 1x ReefWave 25 | 2x ReefWave 25 |
| Weight, empty / filled | 25 kg / 180 kg | 35 kg / 275 kg | 40 kg / 315 kg |
The 170 is the only size in this range under 200 L total volume, and its 60 x 50 cm footprint is the most compact of the three. If floor space is the constraint, this is the size that fits where the 200 and 250 won't. If you want more display volume in roughly the same footprint, the 200 uses the same 60 cm length with more width and height.
Suitable for, and not suitable for
- Suitable for: a first genuinely reef-capable system, or a smaller space where a 200+ L footprint isn't practical.
- Not suitable for: reef keepers planning heavy coral stocking from the outset — the 200 or 250 give more working volume for the same equipment tier.
Care and maintenance
The ReefMat roller advances automatically but the used fleece still needs replacing on a schedule; the ReefATO+ reservoir needs periodic refilling and its sensor needs occasional cleaning. Check the skimmer cup regularly during the first few weeks while bioload stabilises.
Warranty and delivery
24 months standard warranty from Red Sea, with the glass aquarium eligible for a further 12 months if you register the product. This is in addition to your rights under Australian Consumer Law. At 180 kg filled, this is a two-person lift for setup — plan accordingly.
Goes well with
- A heater sized to a 165 L system — not included on any MAX G2+ package.
- An RO/DI unit and reef salt mix — for water changes and top-off.
- A basic reef test kit — to track parameters from day one.
Common questions
Does the 170 include a heater?
No — none of the MAX G2+ sizes include a heater, chiller or RO/DI unit.
Is the return pump smaller on the 170 than the 250?
No. All three sizes in this range ship with the same ReefRun G2 4000 pump and the same Reefer DC Skimmer 300 — only the lighting and circulation hardware scale up on the 250.
How heavy is this system filled, for lifting and floor planning?
Around 180 kg filled, at a 60 x 50 cm footprint.
Is this the current Red Sea generation?
This is the G2+ generation. Red Sea's current marketing focus has moved to the newer G3 platform, but G2+ remains a fully supported, current product line.
