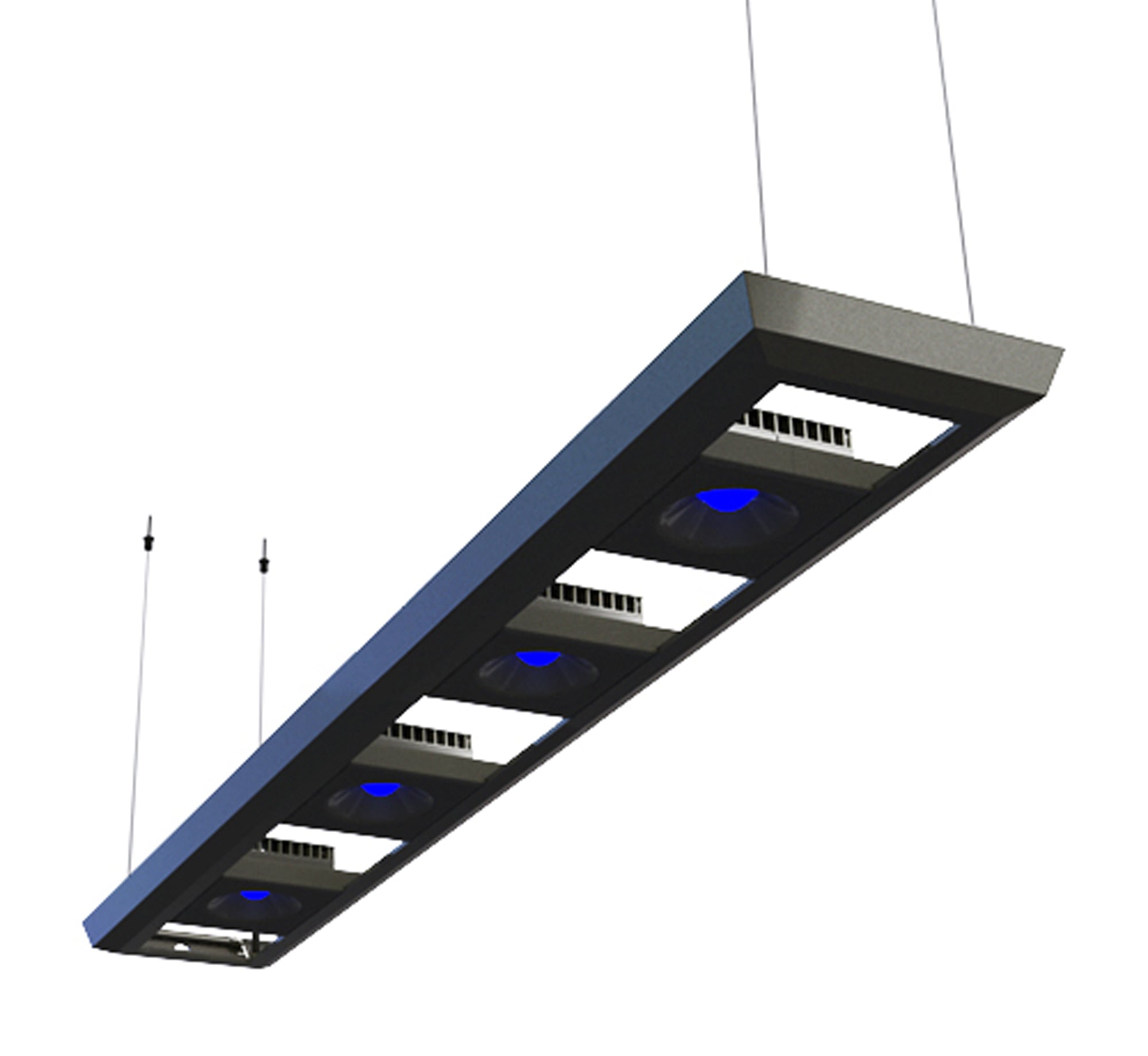

Red Sea ReefLED Pendant for 155-180cm tanks
Water type
Marine + Reef
Fits
Red Sea ReefLED 90, Red Sea ReefLED 160S
Red Sea ReefLED Pendant for 155-180cm tanks
Hold up to four lights level, evenly spaced, with nothing on the rim. This black Red Sea ReefLED Pendant suspends ReefLED units above aquariums from 155–180 cm wide, and is built to carry up to four fixtures across the frame — the size most four-to-six-foot reef displays need once they're running more than one or two lights.
Key features
- Sized for 155–180 cm tanks — holds up to four ReefLED units, spaced evenly across the display.
- Ceiling-hung, not rim-clamped — frees the whole rim for feeding, aquascaping and equipment access, and suits peninsula as well as regular tanks.
- Concealed cable routing — power leads run through the frame rather than trailing across the hood or rim.
- Black finish — a low-profile option; the same frame is also sold in white.
Specifications
| Fits tank length | 155–180 cm |
|---|---|
| Part number | RED712 (black) / RED713 (white) |
| Light capacity | Up to 4 x ReefLED 90 or 160S units |
| Compatible fixtures | Red Sea ReefLED 90 and ReefLED 160S — not the smaller ReefLED G2 60 |
| Mounting drop (light unit only, fixture-dependent) | ReefLED 90: approx. 21 cm · ReefLED 160S: approx. 31 cm |
Which ReefLED Pendant do I need?
Red Sea makes this pendant in five lengths, each in black or white, matched to tank length:
| Tank length | Part number (Black / White) |
|---|---|
| 75–100 cm | R35140 / R35141 |
| 100–120 cm | R35142 / R35143 |
| 125–150 cm | R35144 / R35145 — holds up to 3 units |
| 155–180 cm (this listing) | R35146 / R35147 — holds up to 4 units |
| 180–205 cm | R35148 / R35149 |
Measure your tank's external length first, then plan light count against the frame — the frame is built to the tank, and each ReefLED unit is added on its own adapter tray.
What's included / what you'll still need
The pendant frame ships with its ceiling suspension hardware. It does not include the ReefLED light units, or the adapter trays that clip each fixture into the frame — a ReefLED 90 Adapter Tray or ReefLED 160S Adapter Tray (sold separately, one per fixture) is required to mount lights onto it.
Will it fit my tank?
Sized for tanks 155–180 cm long. It's a ceiling-suspended frame, not a rim clamp, so check the ceiling height and joist or stud location above the aquarium rather than the rim itself — at up to four fixtures wide, confirm there's a solid fixing point spanning the full frame length before drilling. This size does not fit the compact ReefLED G2 60, which uses its own mounting arm or the separate G2 hanging kit.
Suitable for, and not suitable for
Suitable for a four-to-six-foot reef display running two to four ReefLED units that wants them held level and evenly spaced without any rim clamps. Not suitable for the ReefLED G2 60, and oversized for a single-light setup — a mounting arm or the G2 hanging kit is simpler for one fixture.
Warranty and delivery
Covered by Red Sea's manufacturer warranty, in addition to your consumer guarantee rights under Australian Consumer Law. Ships as a boxed frame kit by standard parcel delivery.
Common questions
How many ReefLED units does this pendant hold?
Up to four, spaced evenly across the 155–180 cm frame. Fewer units can be run on the same frame with wider spacing between them.
Does this fit the ReefLED G2 60?
No. The pendant range is built for the ReefLED 90 and 160S. The G2 60 uses its own mounting arm or the separate ReefLED G2 hanging kit.
Are the adapter trays included?
No. The pendant is the frame only — you'll need a ReefLED 90 or 160S adapter tray for each light unit, sold separately, to mount it onto the frame.
