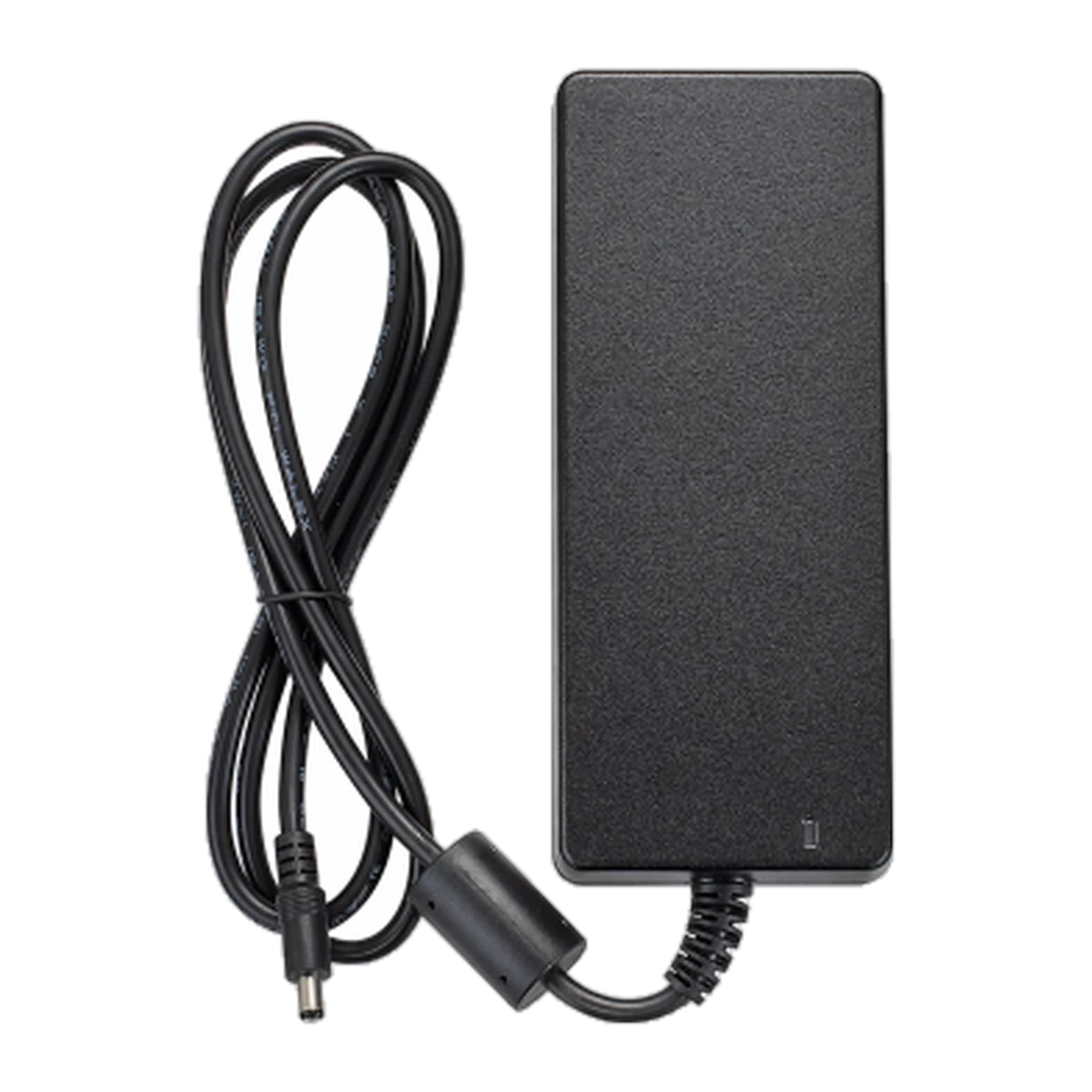

Power Supply for XR30G4, XR30G3, XR30G3PRO and Vectra L1 - 36V 4.44A (XR605)
Wattage
160 W
Fits
Radion XR30 G3, Radion XR30 G3 Pro, Radion XR30 G4 (standard), Vectra L1 pump, Vectra L2 pump
Part no.
MP105-00014 (XR605)
Voltage
36V DC output (4.44A); 100–240V AC input, 50/60Hz
Power Supply for XR30G4, XR30G3, XR30G3PRO and Vectra L1 - 36V 4.44A (XR605)
The wrong EcoTech power brick will not run a Radion or Vectra at all. This is the 36 V, 4.44 A (160 W) supply EcoTech Marine builds for the Radion XR30 G3, XR30 G3 Pro and standard XR30 G4 LED fixtures, and for the Vectra L1 and L2 return pumps – a like-for-like replacement if your original supply has failed, or a spare to keep on hand.
Key features
- 36 V, 4.44 A output – roughly 160 W, matched to the Radion XR30 (G3/G3 Pro/standard G4) and Vectra L1/L2 draw.
- Universal AC input – EcoTech's Vectra L-series supply is rated 100–240 V, 50/60 Hz, so it runs on Australian 240 V mains without a voltage converter.
- Genuine EcoTech part – SKU MP105-00014, sold as the direct replacement supply for these models, not a generic third-party brick.
- Covers three fixture generations and two pumps – one supply for XR30 G3, G3 Pro, standard G4, plus Vectra L1 and L2.
Specifications
| Spec | Detail |
|---|---|
| Output | 36 V DC, 4.44 A (≈160 W) |
| AC input | 100–240 V, 50/60 Hz |
| Part number | MP105-00014 (EcoTech code XR605) |
| Fits | Radion XR30 G3, XR30 G3 Pro, standard XR30 G4, Vectra L1, Vectra L2 |
| Does not fit | Radion XR30 G4 Pro, XR30 G5 (Blue/Pro), XR30 G6 (Blue/Pro) – these use the higher-output XR604 supply |
Which power supply do I need?
EcoTech splits the XR30 lighting range across two supplies. This one, XR605, powers the standard XR30 G4 and the earlier G3 and G3 Pro fixtures, plus the Vectra L1 and L2 pumps. If your light is a Radion XR30 G4 Pro, G5 or G6, you need the higher-output 36 V 6.11 A (XR604) supply instead – check your fixture's model plate before ordering, since the two bricks aren't interchangeable.
Suitable for, and not suitable for
Suitable as a replacement or spare supply for the Radion XR30 G3, G3 Pro and standard G4, and for Vectra L1 and L2 pumps. Not suitable for XR30 G4 Pro, G5 or G6 fixtures, and not suitable for the smaller XR15 range or MP-series wavemakers, which each use their own supply.
What's included
The power supply brick only. It does not include the DC harness or cable that runs from the brick to your fixture or pump – keep your existing cable, or order it separately if it's damaged.
Warranty and delivery
Manufacturer warranty applies in addition to your rights under Australian Consumer Law. Standard delivery Australia-wide.
Common questions
Will this run on Australian 240 V power?
Yes – this supply family is rated 100–240 V, 50/60 Hz, which covers Australian mains. Confirm the fitted mains lead is a standard Australian 3-pin plug when your order arrives.
How do I tell a standard XR30 G4 from a G4 Pro?
Check the model printed on the fixture or your original invoice – EcoTech lists the standard G4 and the G4 Pro as separate models with different power requirements, and this supply only suits the standard G4.
Does this fit the Vectra M-series pumps as well?
No – other Vectra pumps (S and M series) use their own model-specific supply. This XR605 is listed by EcoTech specifically for Vectra L1 and L2.
My old supply has a different connector – will this one plug straight in?
It's supplied as the genuine EcoTech replacement for these models and uses EcoTech's current connector for this generation. If you have a much older XR30 (Gen 1 or 2) fixture, check with us first, as earlier generations used a different connector.
