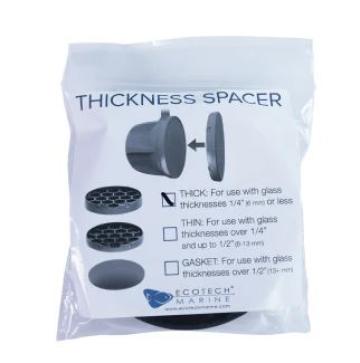

Vortech MP40 Thick Spacer (Under 6mm Glass)
Fits
EcoTech Marine VorTech MP40 (all wet/dry-side generations)
Part no.
MP006
Vortech MP40 Thick Spacer (Under 6mm Glass)
A VorTech that spins up rough or won't hold a wide flow range is often fighting the wrong magnetic gap, not a failing motor. This genuine EcoTech Marine thickness spacer fits between the MP40 dry-side driver and the tank wall, taking up the extra distance on aquarium glass 6 mm thick or thinner so the internal rotor and external driver couple with the correct magnetic strength.
Key features
- Restores correct magnetic coupling – compensates for thinner glass so the drive doesn't run loose or rough.
- For glass 6 mm or under – the thick spacer pairs with the driver on the thinner end of the MP40's supported glass range.
- Genuine EcoTech Marine part – matched to the MP40 dry-side housing.
- Simple fit – no tools beyond what's used to mount the driver itself.
Specifications
| Compatible pump | EcoTech Marine VorTech MP40, all wet/dry-side generations |
|---|---|
| Glass thickness range | 6 mm or less |
| Function | Fine-tunes magnetic drive coupling between dry-side driver and wet-side rotor |
| Brand | EcoTech Marine |
Which spacer do I need?
| Spacer | Glass thickness |
|---|---|
| Thick spacer (this product) | 6 mm or less |
| Thin spacer | 6–13 mm |
If your glass sits outside the 6–13 mm range covered by these two spacers, check EcoTech's current published maximum glass thickness for the MP40 before ordering rather than guessing between the two.
Suitable for, and not suitable for
Suitable for MP40 installations on aquarium glass 6 mm thick or less, where the standard driver spacing leaves the magnetic coupling too loose. Not the correct spacer for glass over 6 mm – use the thin spacer instead – and not designed for MP10 or MP60 drivers.
What's included
1 thickness spacer. The MP40 driver and wet side are not included.
Goes well with
Warranty and delivery
Spare part, sold as-is. Standard delivery Australia-wide.
Common questions
How do I know if I need the thick or thin spacer?
Measure your aquarium glass. Under 6 mm calls for this thick spacer; 6–13 mm calls for the thin spacer.
What happens if I use the wrong spacer?
The magnetic coupling will be too loose or too tight for your glass thickness, which can show up as a rough, noisy or unstable-running pump.
Does acrylic use the same spacer sizing as glass?
The spacer is sized by wall thickness rather than material, so measure the actual tank wall thickness rather than assuming glass figures apply.
