Vectra Barb & Screen Kit (Gen 1)
Water type
Marine + Freshwater
Fits
Vectra S1, M1
Part no.
VP011
Pack quantity
1 barb, 1 screen
Genuine part
Yes, EcoTech Marine
Barb
19 mm ID tubing
Water type
Marine + Freshwater
Fits
Vectra L1
Pack quantity
1 barb, 1 screen
Genuine part
Yes, EcoTech Marine
Barb
25 mm ID tubing

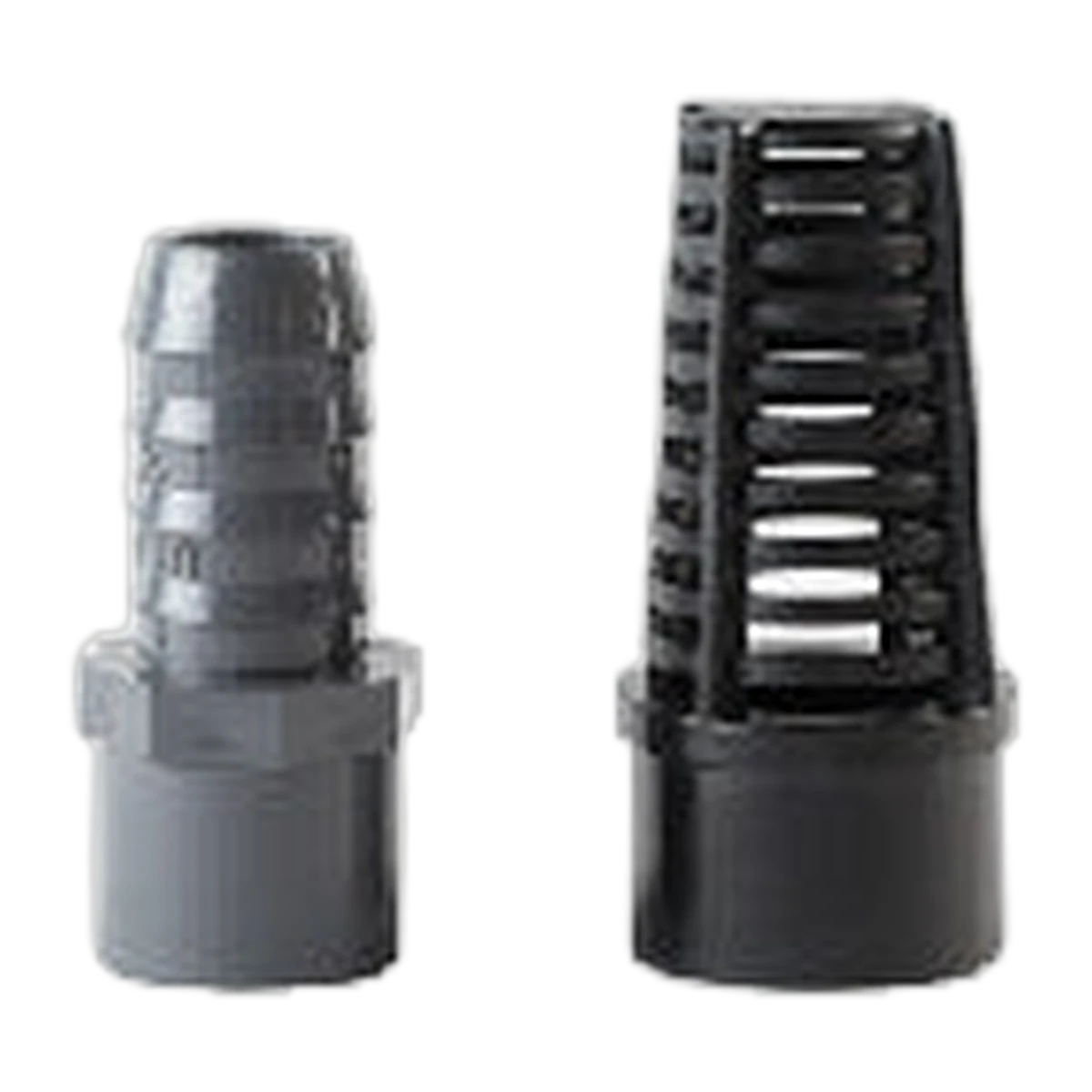

Vectra Barb & Screen Kit (Gen 1)
Vectra Gen 1 pumps use a different barb and screen kit to the current S2/M2/L2 range – this is the Gen 1 fitting, for the S1, M1 and L1 pumps. The kit supplies the intake screen and output barb fitting sized for the older-generation Vectra, keeping fish, snails and larger debris out of the impeller chamber while giving you a barbed connection for flexible tubing on the pump output.
Key features
- Genuine EcoTech Marine Gen 1 fitting – for Vectra S1, M1 and L1 pumps, which use different fittings to the current S2/M2/L2 range.
- Intake screen protects the impeller – blocks fish, snails and debris from reaching the impeller chamber.
- Barbed output fitting – accepts flexible tubing as an alternative to rigid PVC on the pump output.
- One kit for two pump sizes – the S1 and M1 share the same input/output size, so the M1 kit fits both.
Specifications
| Size | Barb fitting | Screen size | Fits |
|---|---|---|---|
| M1 (also fits S1) | 3/4" ID soft tubing | 1" screen, for the 1" M1/S1 intake | Vectra S1, Vectra M1 |
| L1 | 1" ID soft tubing | Screen sized for the 1.5" L1 intake | Vectra L1 |
Suitable for, and not suitable for
Suitable for Vectra S1, M1 and L1 pumps – the original Gen 1 Vectra range. Not suitable for Gen 2 pumps (Vectra S2, M2, L2), which use a different, incompatible barb and screen kit with different fitting sizes.
What's included
One barbed output fitting and one intake screen, sized for the variant selected. No pump, tubing or fittings solvent included.
Care and maintenance
Do I need glue to fit this?
The barbed output fitting needs PVC solvent cement to seat securely on the pump's output collet. The intake screen needs no solvent – it's designed to be pulled directly into the pump's intake.
Which kit do I need for an S1 pump?
The M1 kit – the S1 and M1 share the same input and output size, so one kit covers both.
Compatibility, spares and supersession
Fits Vectra Gen 1 pumps only – S1, M1 and L1. Not interchangeable with the S2/M2/L2 barb and screen kit used on current-generation pumps, which uses different fitting sizes.
Warranty and delivery
Spare part, sold as-is. Standard delivery Australia-wide.
Common questions
Will this fit my Vectra S2?
No. Gen 1 (S1/M1/L1) and Gen 2 (S2/M2/L2) Vectra pumps use different, incompatible barb and screen kits – order the kit that matches your pump's generation and size.
Why does the intake need a screen at all?
Without one, anything small enough to reach the intake – fish, snails, shrimp or loose substrate – can be pulled into the impeller chamber and damage the pump.
Can I reuse the old barb fitting instead of gluing on a new one?
Once a PVC-cemented barb fitting is removed it's rarely reusable – this kit replaces it rather than repairs it.
