Radion RMS G6/G5 Slide
Water type
Marine + Freshwater
Fits
Radion XR15 G5, Radion XR15 G6, Radion XR30 G5, Radion XR30 G6
Part no.
XR726 (XR15), XR727 (XR30)
Warranty
1 year
Radion RMS G6/G5 Slide
The part that lets you aim a light, not just hang one.

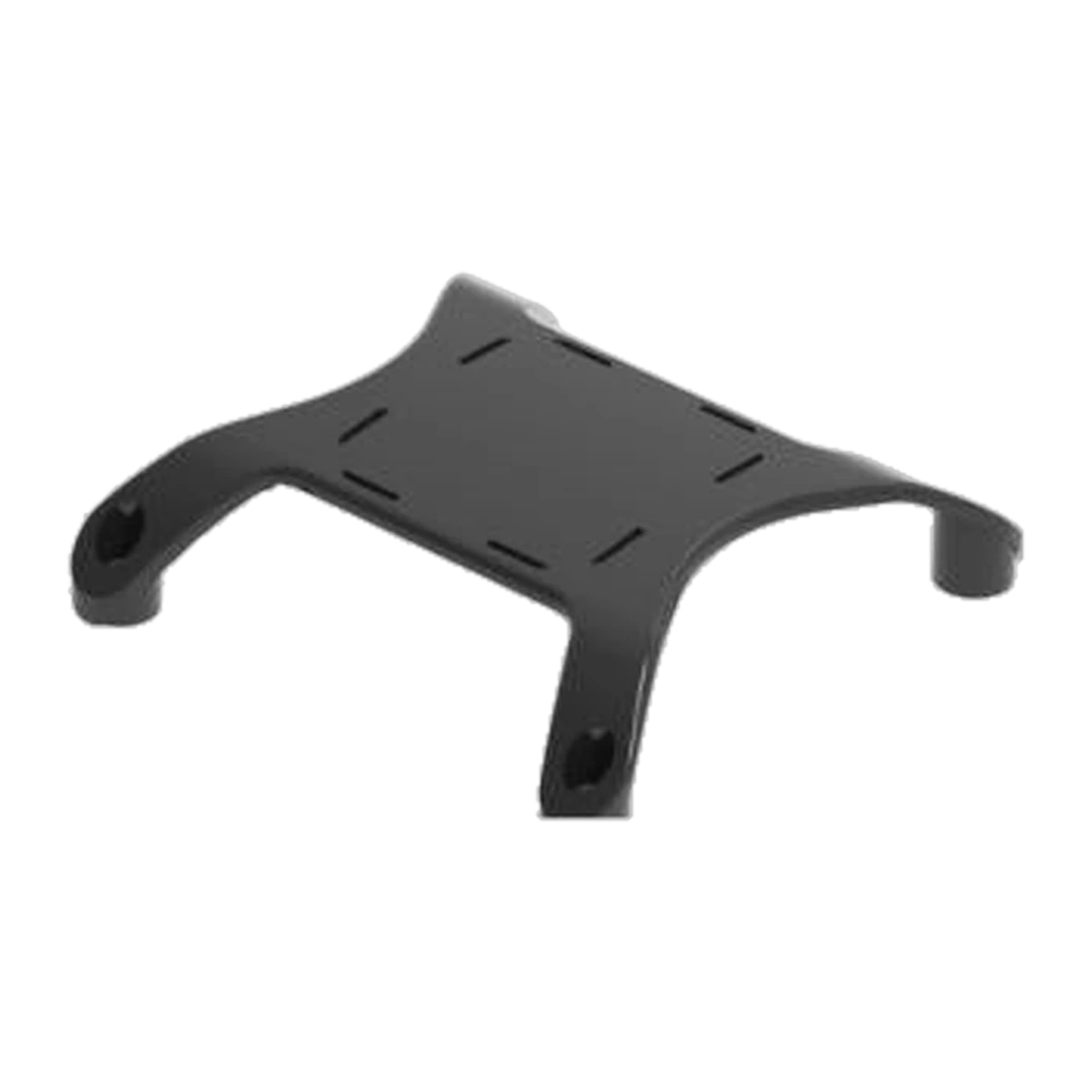

The Radion RMS G6/G5 Slide is Part C of EcoTech Marine's Multi-Light RMS system – the bracket that clamps a single Radion to the RMS track and then lets it travel along that track and rotate in place. You need one slide for every fixture on the rail. Choose the XR15 version or the XR30 version to match the light, because the two are different parts.
Key features
- Horizontal and rotational adjustment – move the fixture along the rail and turn it, so the light lands over the rockwork instead of the centre of the tank.
- One slide, one light – buy a slide each time you add a Radion to the track.
- XR15 and XR30 versions – sized to the fixture housing, and both run on the same track.
- Fits G5 and G6 – this is the current-generation slide, not the older XR15/XR30 slide.
- Repositionable at any time – rescape the tank, slide the light, no re-drilling and no new hardware.
Which version do I need?
| Option | Part number | Fits |
|---|---|---|
| XR15 | XR726 | Radion XR15 G5 and XR15 G6 |
| XR30 | XR727 | Radion XR30 G5 and XR30 G6 |
If you are running a mix of XR15 and XR30 fixtures on one track, order the matching slide for each light. They coexist on the same rail without any adapter.
Specifications
| Product | RMS G6/G5 Slide (Part C of the Multi-Light RMS system) |
|---|---|
| Part numbers | XR726 (XR15), XR727 (XR30) |
| Sold as | Single slide |
| Quantity needed | One per Radion fixture |
| Adjustment | Slides horizontally along the track and rotates |
| Attaches to | EcoTech Multi-Light RMS track |
| Generation | Radion G5 and G6 |
| Warranty | 30 days on the mounting system and parts, in addition to your rights under Australian Consumer Law |
What's included
- One RMS slide in the size you select
Not included
- RMS Track – the rail the slide runs on
- RMS Arms Kit – or EcoTech's RMS hanging kit, if you are suspending the track
- The Radion fixture
How the Multi-Light RMS goes together
EcoTech sells this mount as three parts, bought separately. Every page in the family carries the same table so you can see what is still missing from your basket.
| Part | What it does | How many you need |
|---|---|---|
| Part A – RMS Track | Spans the tank and carries the fixtures | One, sized to tank width |
| Part B – RMS Arms | Two vertical arms that clamp to the tank and hold the track up | One kit of two arms |
| Part C – RMS Slides | Attaches each Radion to the track and lets it slide and rotate | One per fixture |
Suitable for, and not suitable for
Suitable for:
- Adding another Radion to an existing Multi-Light RMS track
- Radion XR15 G5, XR15 G6, XR30 G5 and XR30 G6 fixtures
- Replacing a lost or damaged slide
- Aquascapes where the light needs to sit off-centre
Not suitable for:
- Use on its own – there must be a track and either arms or a hanging kit
- The Single Light RMS tank mount, which is a different, self-contained product
- Non-Radion fixtures
- Radion G4 and earlier – EcoTech does not publish compatibility for this slide with those generations, so we will not claim it. If you run a G4, ask us before ordering.
Care and maintenance
A slide that has not moved in a year will be salted into place. Wipe the track and the slide body down when you clean the glass, and slide each fixture a few centimetres back and forth occasionally so it does not seize.
Support the fixture with one hand whenever you loosen a slide. Nothing holds the light once the clamp is released.
Goes well with
- RMS Track – required
- RMS Arms Kit – required unless you are hanging the track
- Radion G6/G5 Diffuser – blends the light where two fixtures overlap
- RMS Tank Mounting System – if you only ever plan to run one light
Warranty and delivery
EcoTech Marine warrants the mounting system and parts for 30 days from purchase against manufacturing defects and workmanship. This sits in addition to the consumer guarantees you have under Australian Consumer Law, which a manufacturer's warranty cannot displace.
International warranty service is handled through the local distributor, so Australian claims come back through us. Ships as a standard parcel.
Common questions
How many slides do I need?
One for every Radion on the track. A Multi-Light RMS carrying three fixtures needs three slides, plus one track and one arm kit.
Is the XR15 slide the same as the XR30 slide?
No. They are separate parts – XR726 for the XR15 and XR727 for the XR30 – because the fixture housings differ in size. Both attach to the same RMS track.
Will this slide fit my Radion G4?
EcoTech publishes this slide as a G5 and G6 part and does not state compatibility with G4 or earlier, so we do not claim it fits. Contact us with your fixture model before ordering if you are running an older generation.
Can I move the light after it is installed?
Yes, that is the point of the slide. It travels horizontally along the track and rotates, so you can reposition a fixture after a rescape without touching the track or the arms.
Does the slide come with the track?
No. The EcoTech Multi-Light RMS is sold as three separate purchases – track, arm kit, and one slide per fixture.
